PS6: Power Supply with Six channel Digital Control for Gas sensing
May 24 - Oct 24

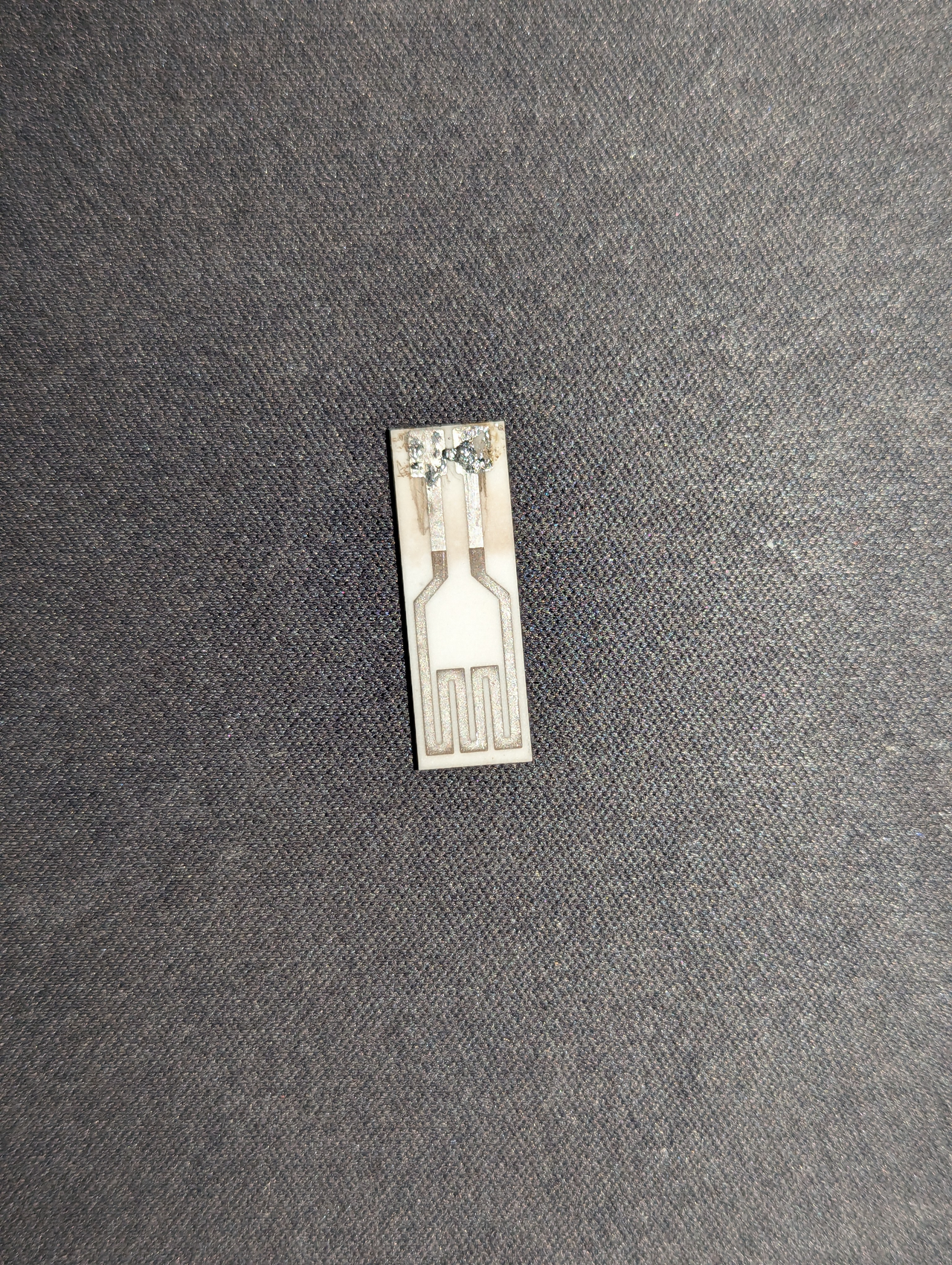

This project involved designing and building a fully functional gas sensing setup from scratch using an Arduino Mega as the brain and a custom Power electronics circuit. The controller was specifically designed to provide different different voltage at different channels of the sensor. the sensors were integrated through the IDEs and the data was read through the LAN connection. the power supply was controlled through the software over serial connection.
Hardware Design
The controller features an extensive input array that includes:
- 6 channel output
- Voltage range from 0.9V to 16V each channel
- Short Ciruit failsafe. with limiting current feature on each channel
- digital and manual control
- LCD Display with multiple mode

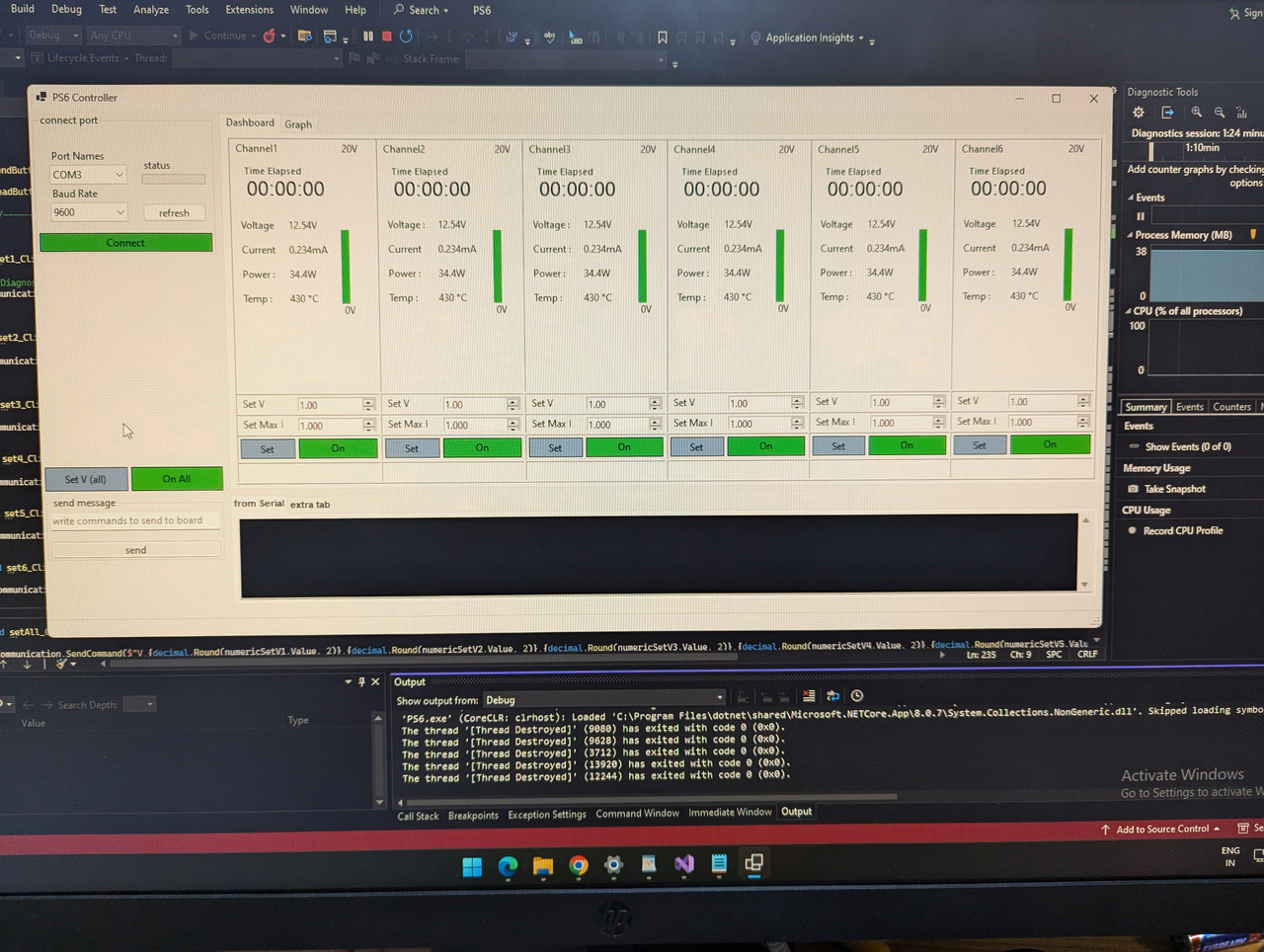

- Fully automated control with software

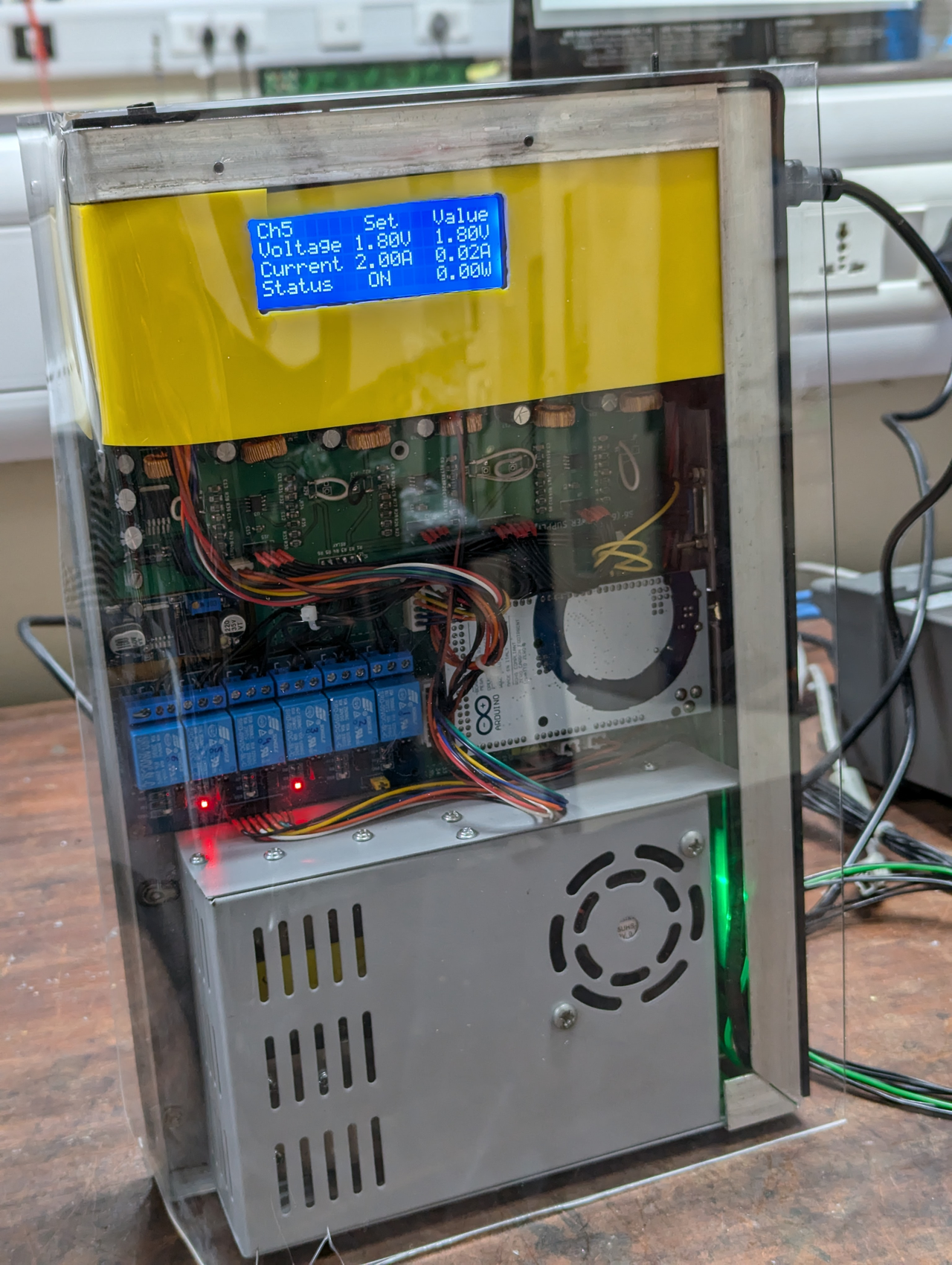

digital heater power supply with six channel output
Technical Implementation

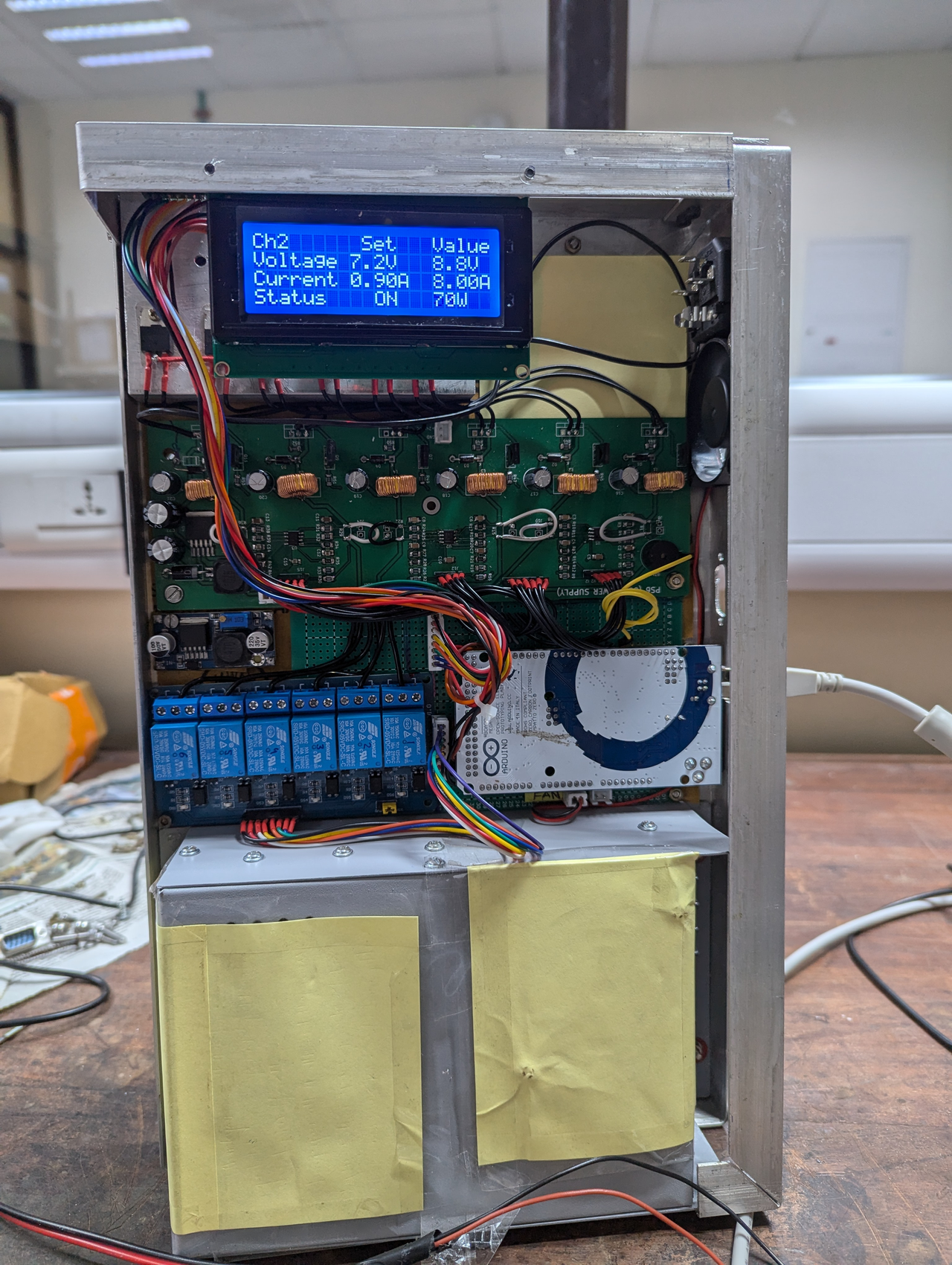

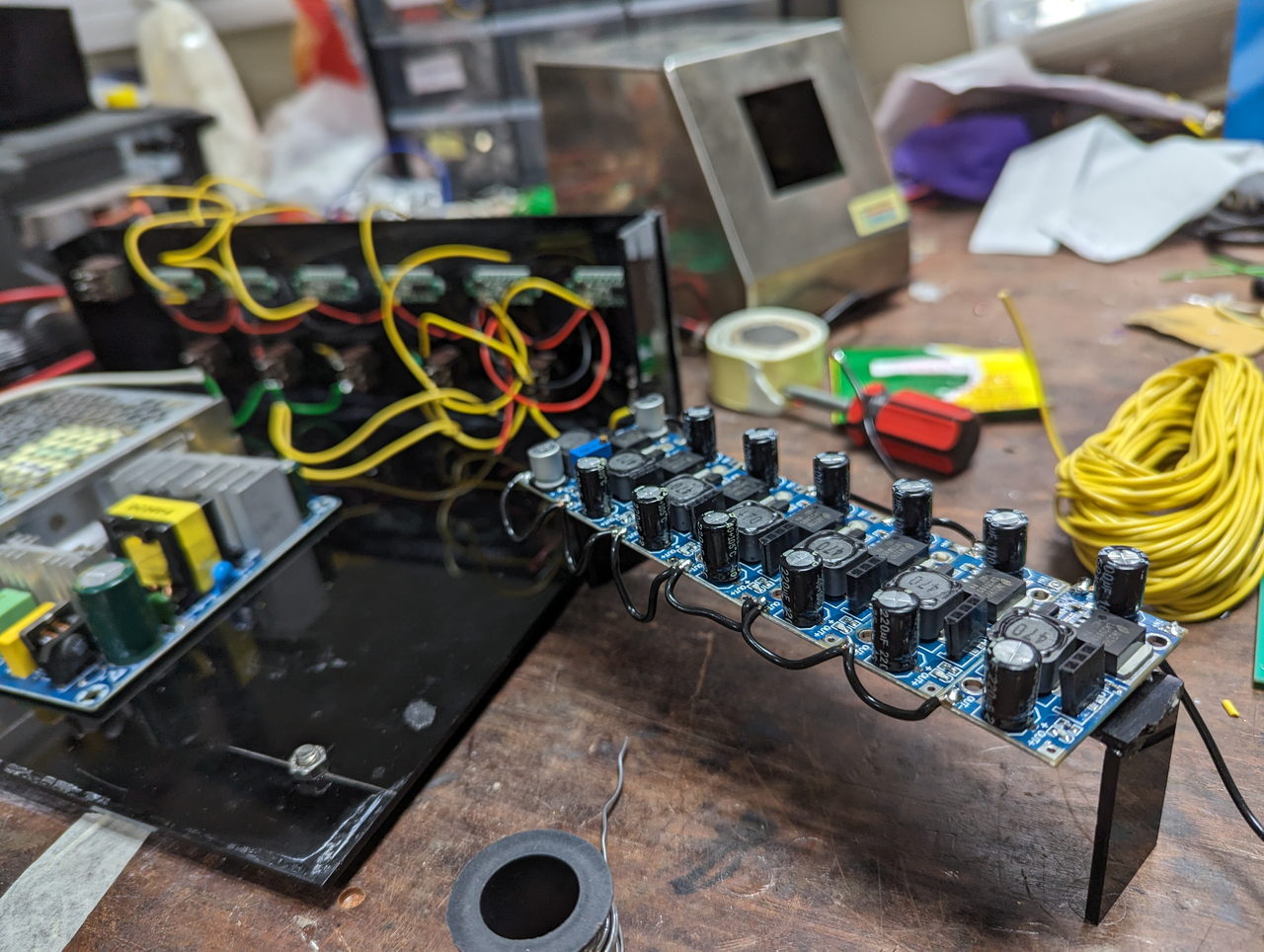

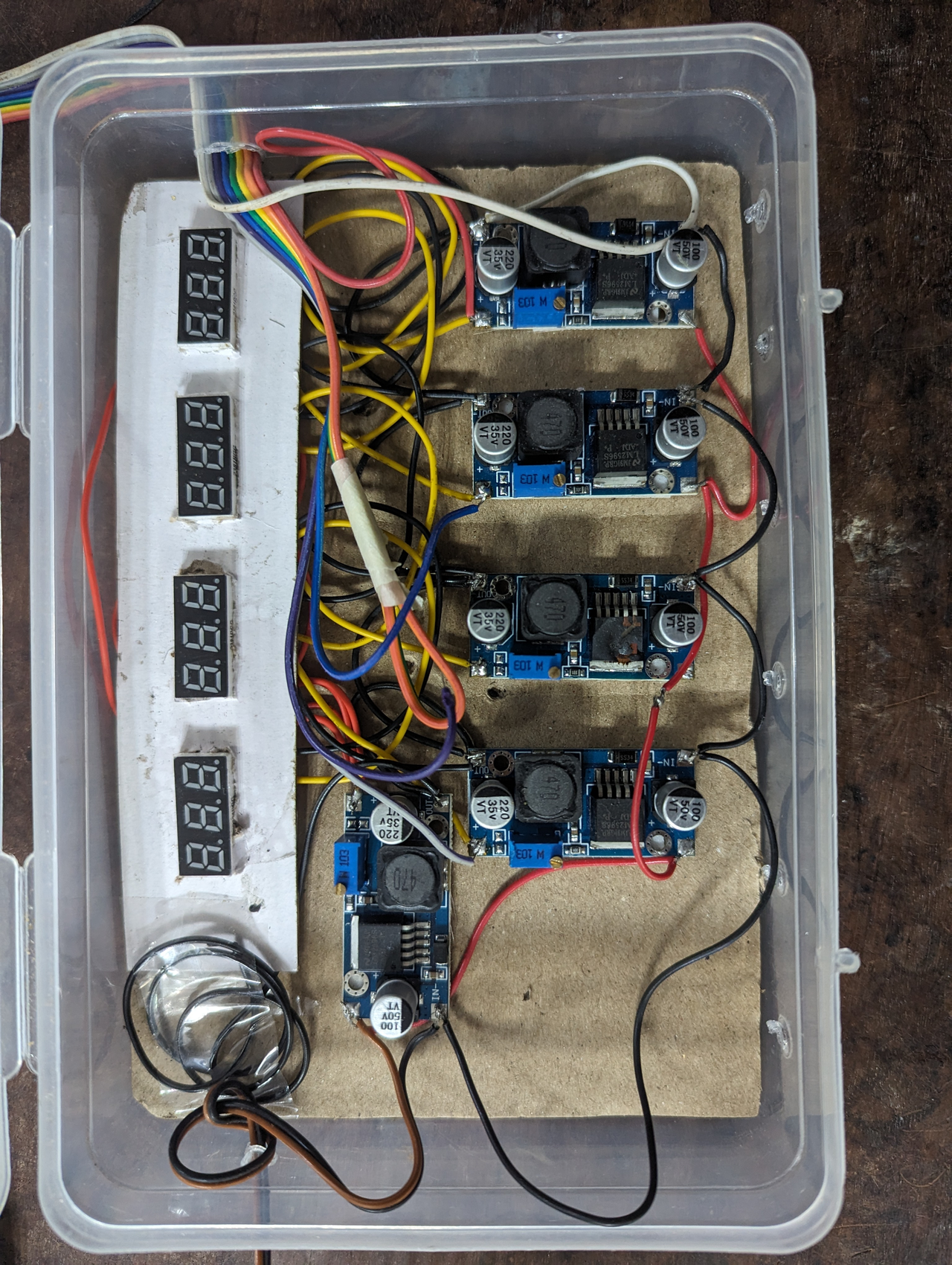

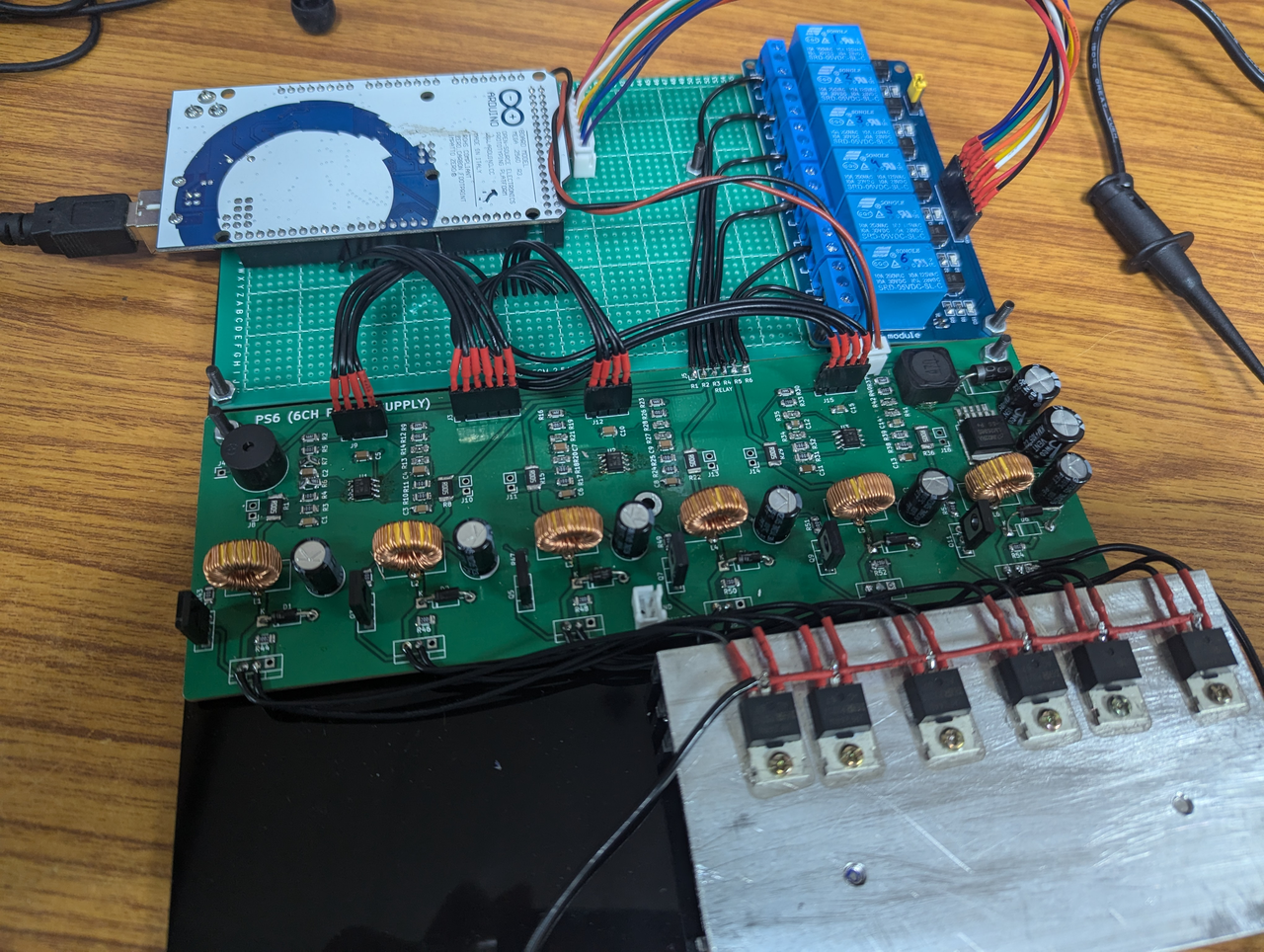

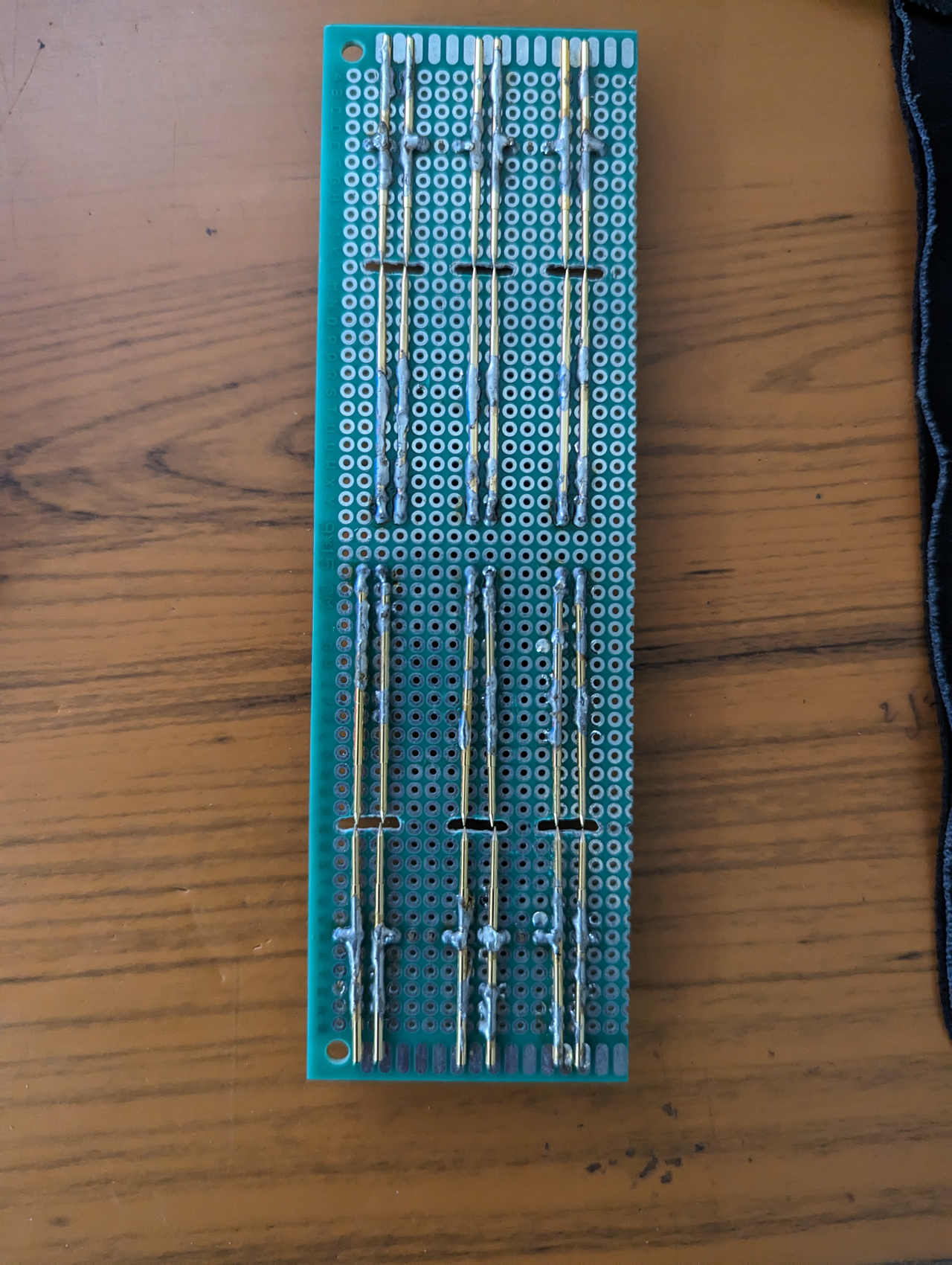

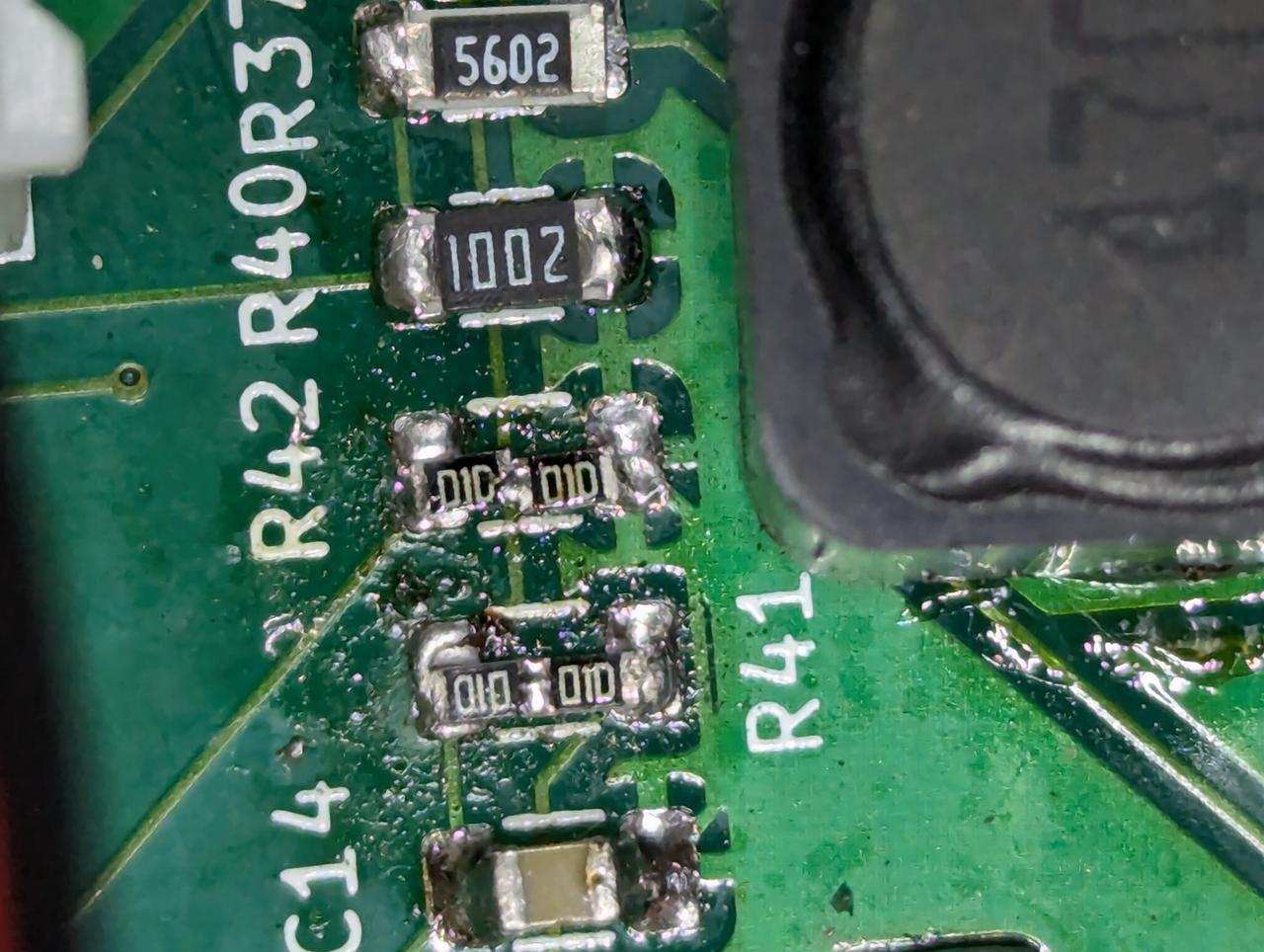

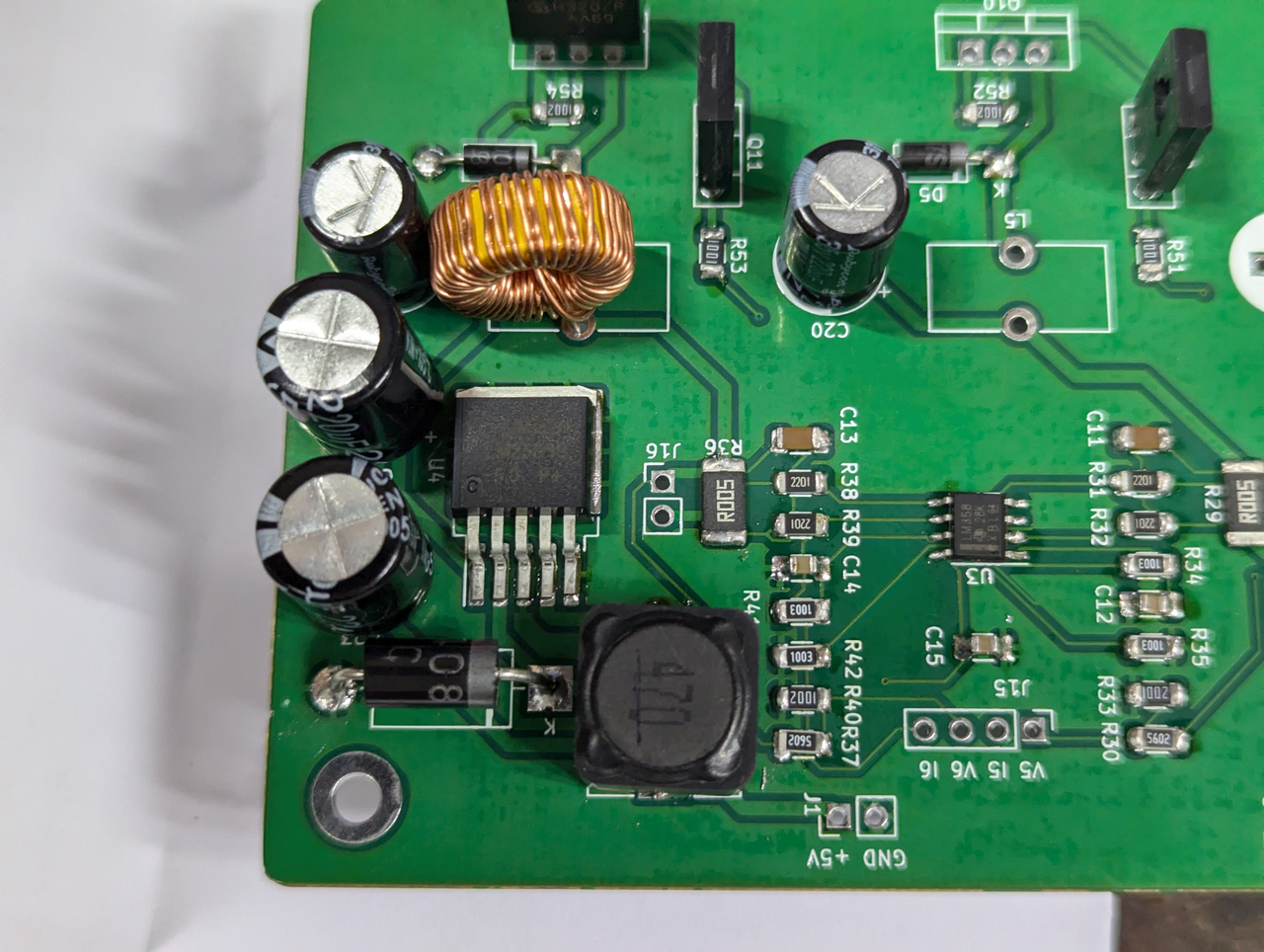

Gallery 1: PS6 Images

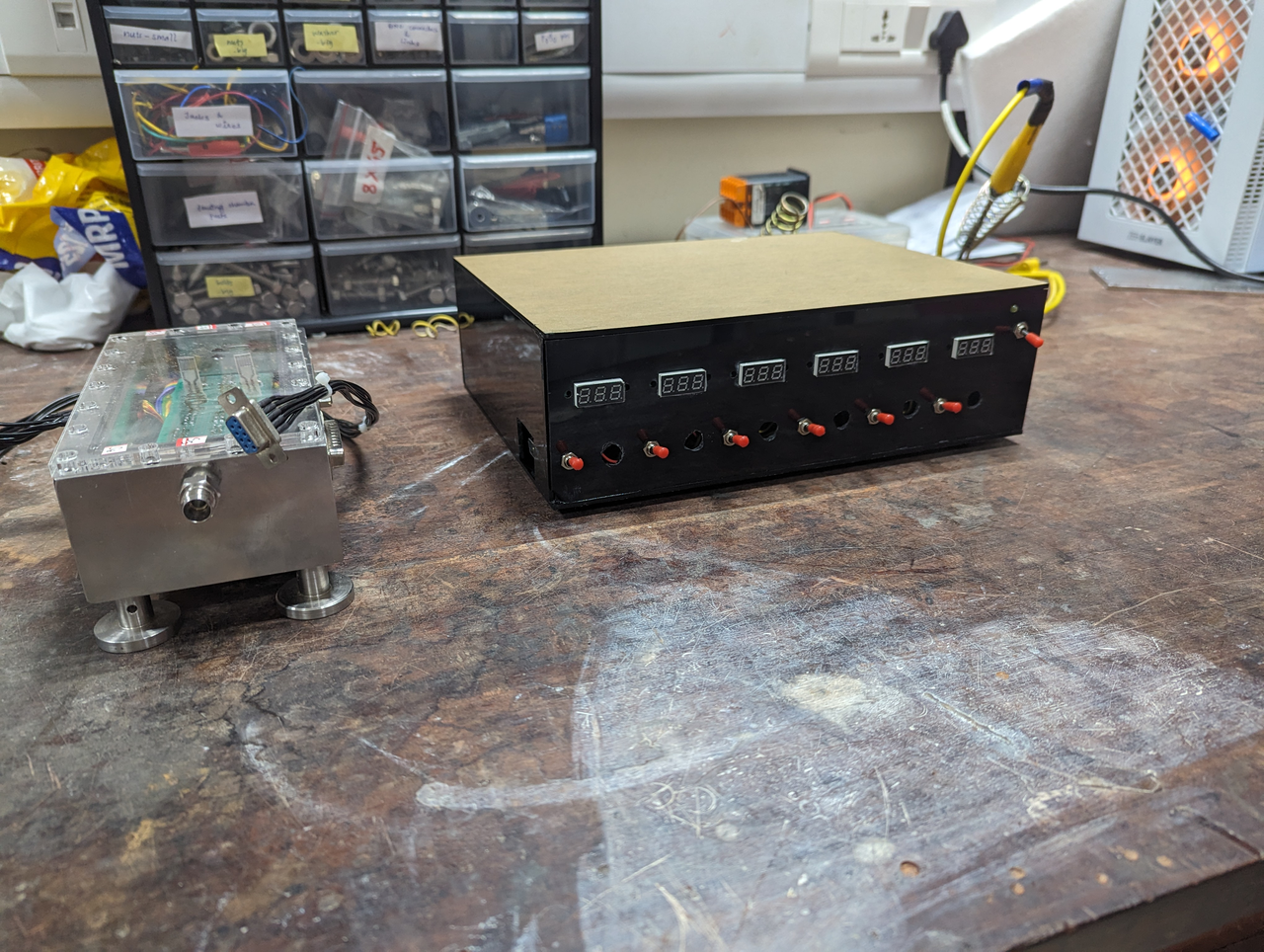

Case Design

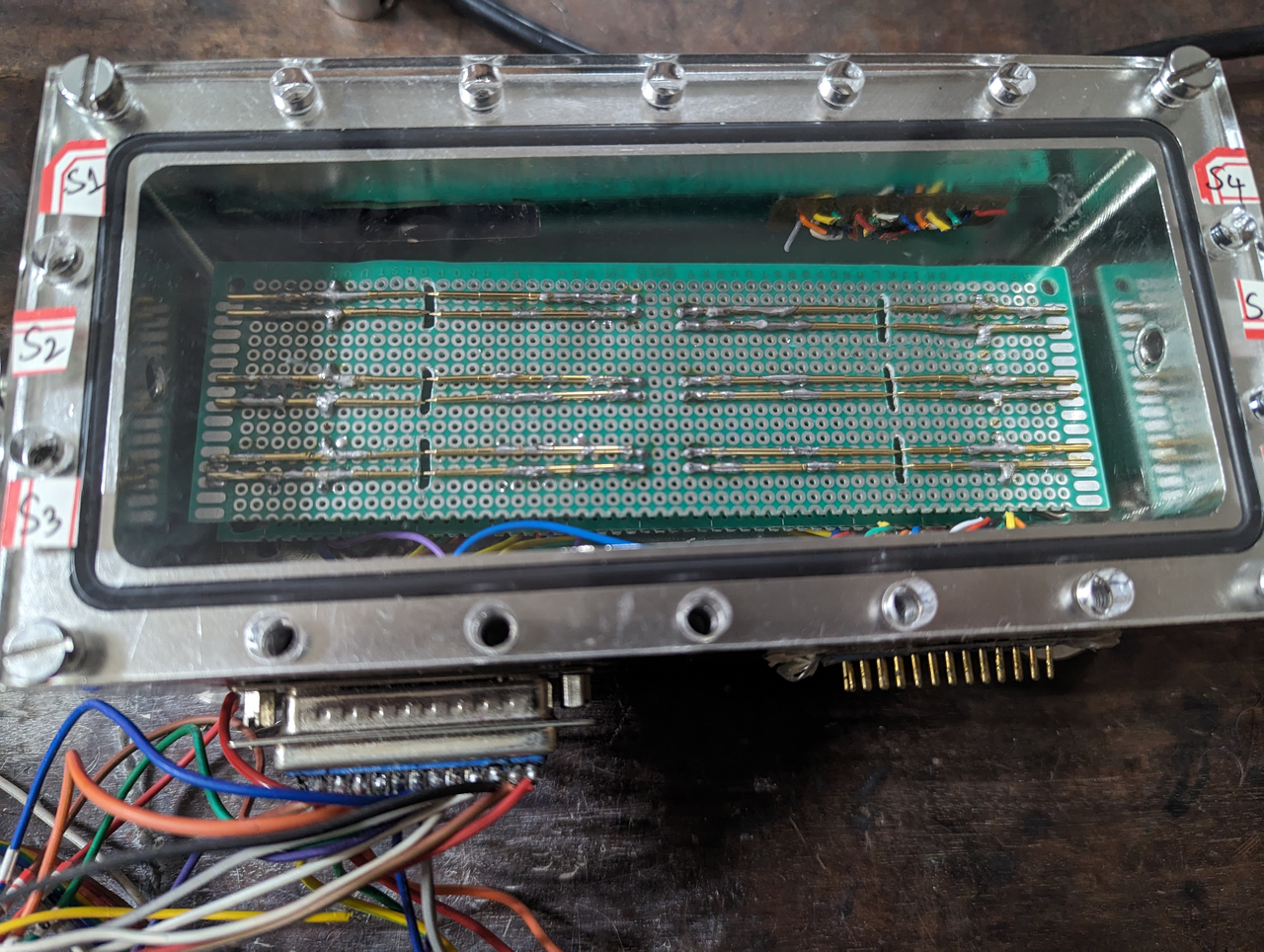

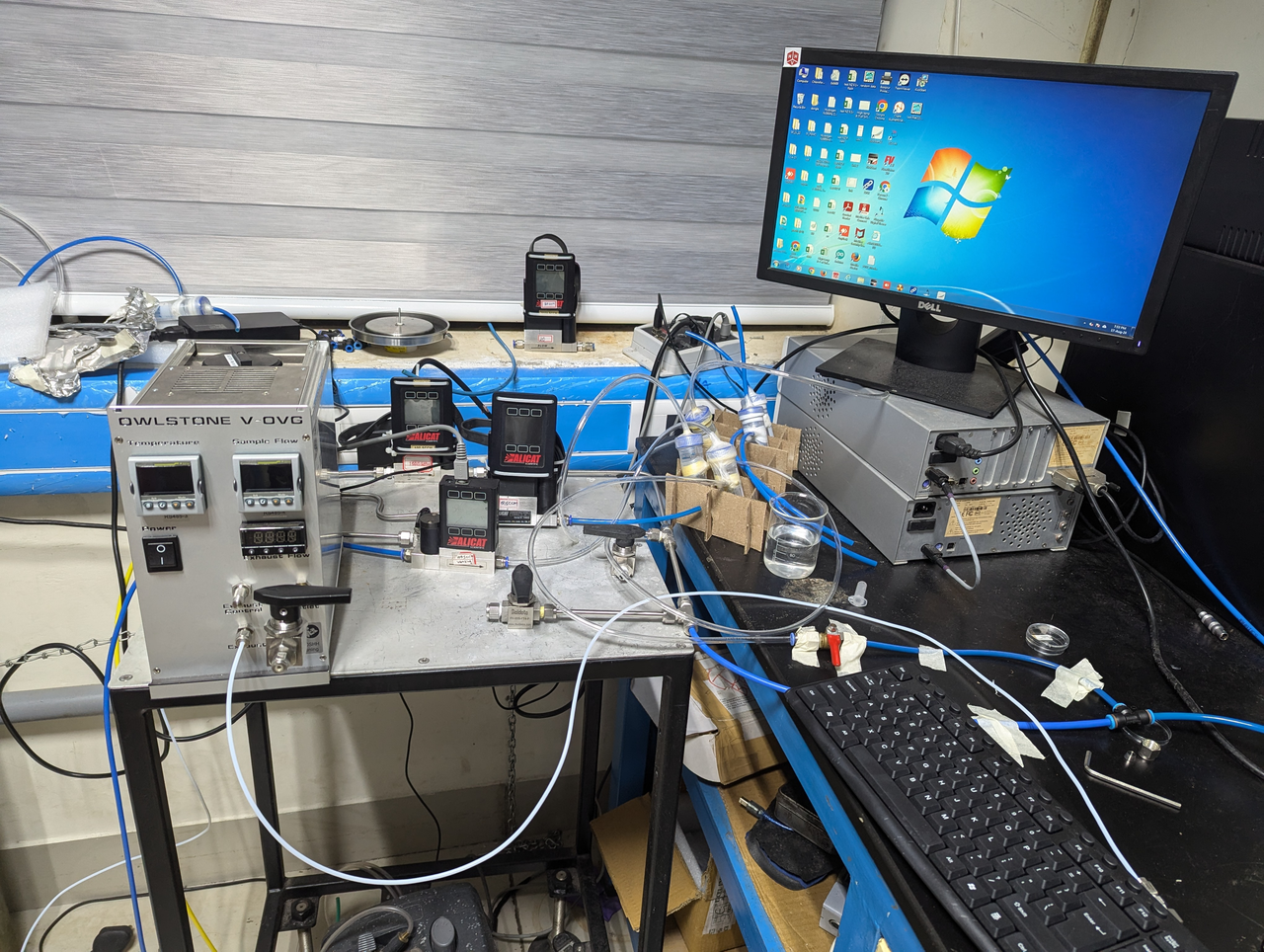

Gallery 2: PS6 Images
- Integrated cable management for a clean setup
